Compression Fittings
Showing 1– 12 of 138 results
Screw is not the same screw!
This phrase is especially true for Stainless Steel Pipe Fittings, which depend on the highest security and with little downtime.
The heart of a cutting ring fitting according to EN ISO 8434-1 (DIN 2353) is the cutting ring. In most cases, the specially designed and tested by Germanischer Lloyd Two edge cutting rings are used, which have shown themselves to be very precise and highly reliable a million times. The cutting ring seals the fully assembled screw in three prominent places.
Description
Extremely good cut
High tightness, no rust on the surface
Safe installation
No "set" of the cutting ring
The cutting rings are divided into 3 series:
-
LL: for compressed air, plastic pipes, laboratory apparatus; especially in the low pressure range up to max. PN 100
-
L: at larger size pressure loads up to max. PN 315, in the field of measurement and control technology, paper and plastics industry, pharmaceutical industry, aerospace, hydraulic systems and in the paint and coatings industry
-
S: at high pressure, vibrations and high mechanical. Stresses in heavy machinery, shipbuilding, mining, chemical industry, industrial refrigeration, harbor and lock installations, offshore, petrochemical, usually in the pressure range from 250 up to PN 400 using kegligen screw threads to PN 630th

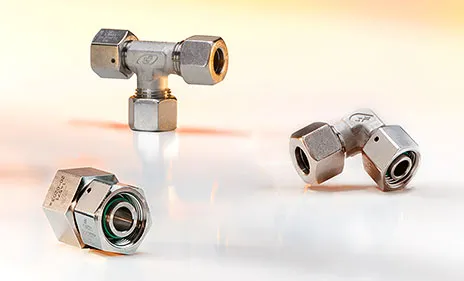

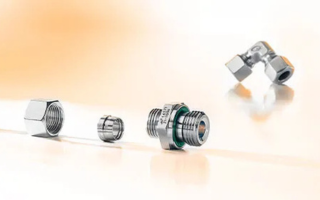

Functional description of the ferrule:
When tightening the nut the cutting ring is guided into the connector plug. The cone directs the cutting edge for increased tightening of the nut into the surface of the pipe. The tube is pushed into the nozzle base, where it can exert a sealing function with appropriate clean preparation. On the other side, the cutting ring is wedged by the pressure of the nut onto the tube. With dynamic load this fit provides additional support. If the tube is exactly perpendicular cut and deburred, three distinctive points can be sealed in the fully assembled fitting.

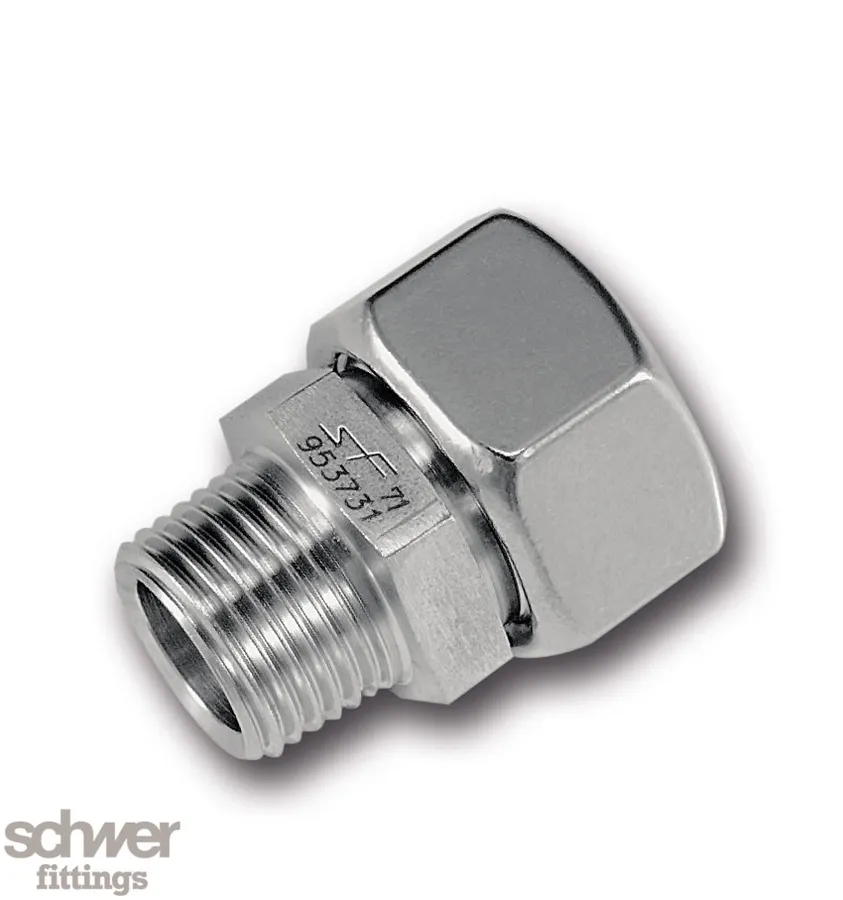

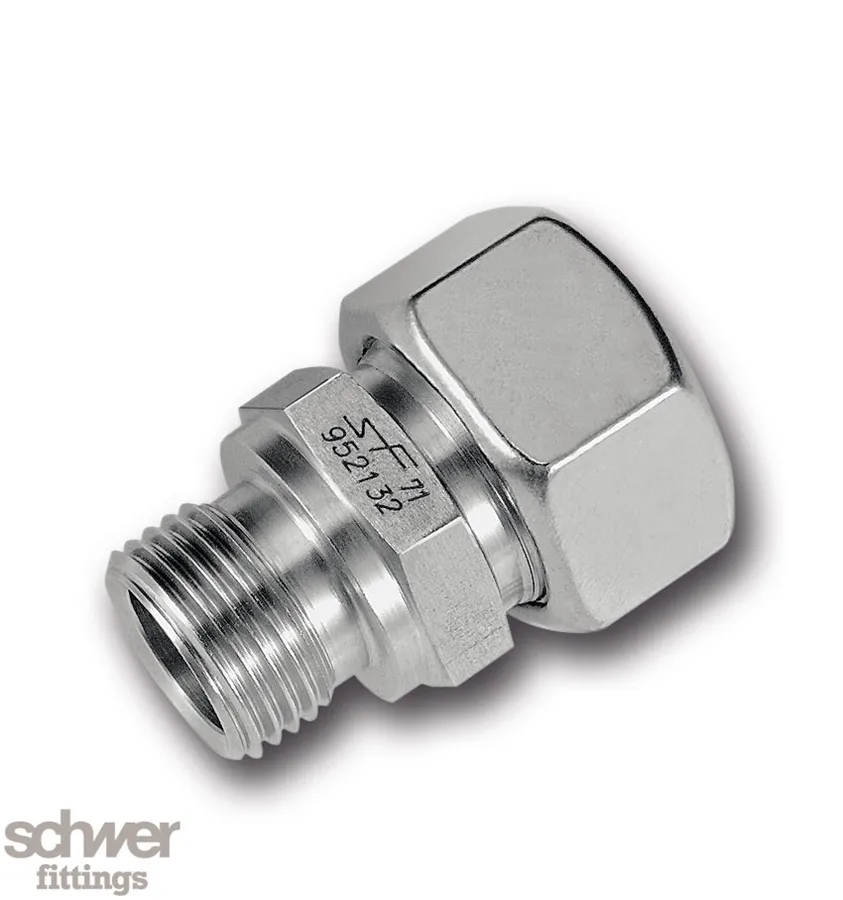

24° Weld Fittings
In the 24 ° -Weld nipple fitting the pipe welding side is adjusted depending on the diameter and wall thickness of the pipe dimensions. The seal between the fitting and the welding nipple is an O-ring, which is mounted on the 24 ° cone of the welding nipple.
Functionality:
The union nut is rotatably mounted on the neck of a body. The pin is thereby between two semi-circular in cross-section radial grooves of the neck and the nut and then performs the holding function of the taper coupling. The sealing is achieved by the O-ring 24° - Taper couplings in the range of 24° -lnner cone the threaded connector (bore form W to DIN 3861).
Benefits:
- Adjustable direction by the rotatable cap nut on the neck
- Screwed onto threaded fittings normally provided for cutting ring connections to DIN 3853
- Small cross-sectional variation
- Easy and quick assembly by tightening distance fixed at low torque
- High leakage security by O-ring seal
- High load capacity with pressure fluctuations and vibrations in the system
- High rip out protection by interlocking construction
